Dehn

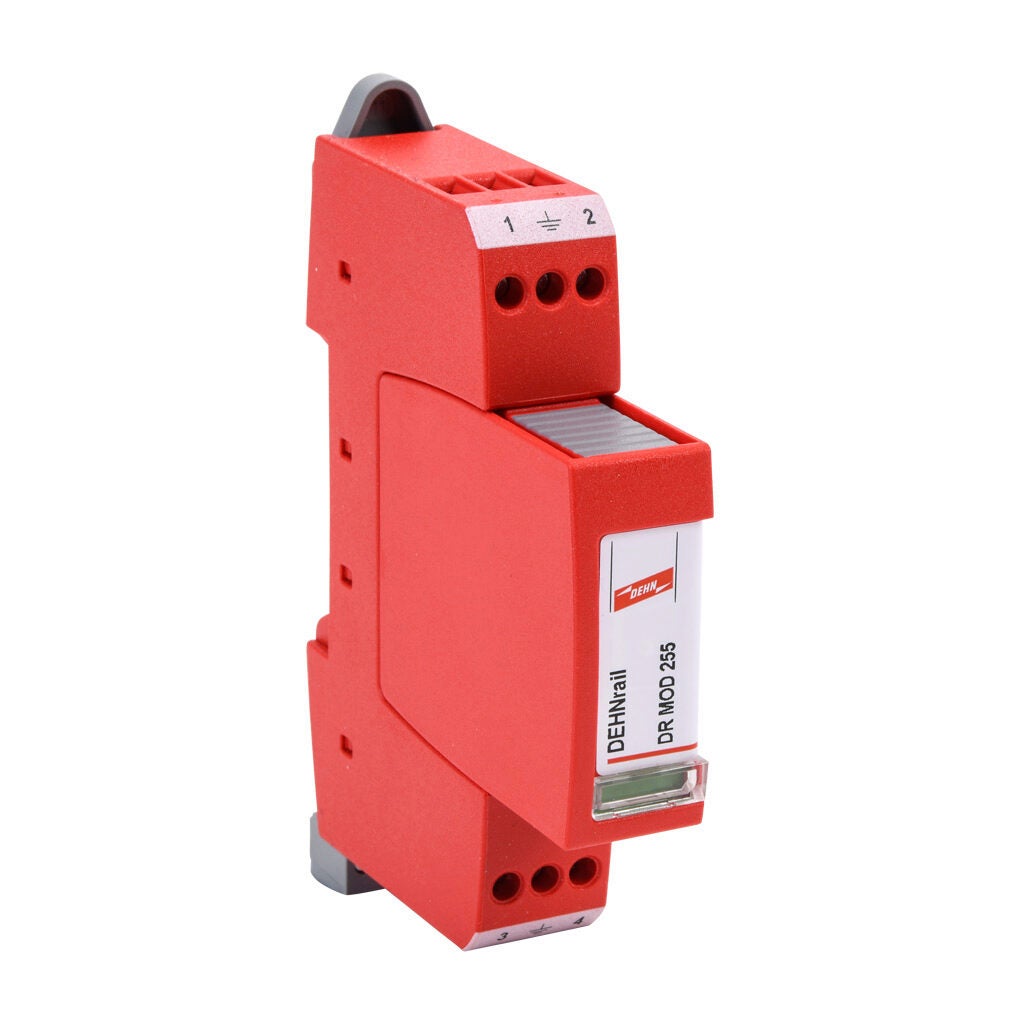

953205 Dehn DR-M-2P Series Supplemental Power & Controls Surge Protective Device (SPD)

Name: 953205 Dehn DR-M-2P Series Supplemental Power &amp; Controls Surge Protective Device (SPD)
SKU: 953205
Price: 74.00 USD
Availability: InStock

Product short description:

953205 Dehn DR-M-2P Series Supplemental Power & Controls Surge Protective Device (SPD) Features and Specifications: Brand: Dehn Item: Surge Protective Device (SPD) Series: DR-M-2P Surge Protection Type: Supplemental power & controls protection UL Type: UL Type 4 component assembly Circuit Type: Series or parallel circuit Neutral Ground Protection: No System Voltage: 230VAC/DC 1-Phase Nominal Discharge […]

Product brochure

Price: US $74.00

Free same day shipping

Product no: 953205

Product info: 953205 Dehn DR-M-2P Series Supplemental Power & Controls Surge Protective Device (SPD)

Product long description:

953205 Dehn DR-M-2P Series Supplemental Power & Controls Surge Protective Device (SPD)

3 kA discharge current, 230VAC/DC 1-Phase, series or parallel circuit, 35mm DIN rail mount.
Product specifications
953205 Dehn DR-M-2P Series Supplemental Power & Controls Surge Protective Device (SPD)

Features and Specifications:

Brand: Dehn

Item: Surge Protective Device (SPD)

Series: DR-M-2P

Surge Protection Type: Supplemental power & controls protection

UL Type: UL Type 4 component assembly

Circuit Type: Series or parallel circuit

Neutral Ground Protection: No

System Voltage: 230VAC/DC 1-Phase

Nominal Discharge Current: 3 kA

Voltage Protection Rating (VPR): 1250V (L-N), 1500V (L-G)

Indicating Type: Red/green indicating flag

UL Rating: UL 1449 rated

Mounting: 35mm DIN rail

Connection: Screw terminal

Includes: (1) SPDT health status contact
